T R A N S F I G U R A T I O N
C A R T R I D G E S

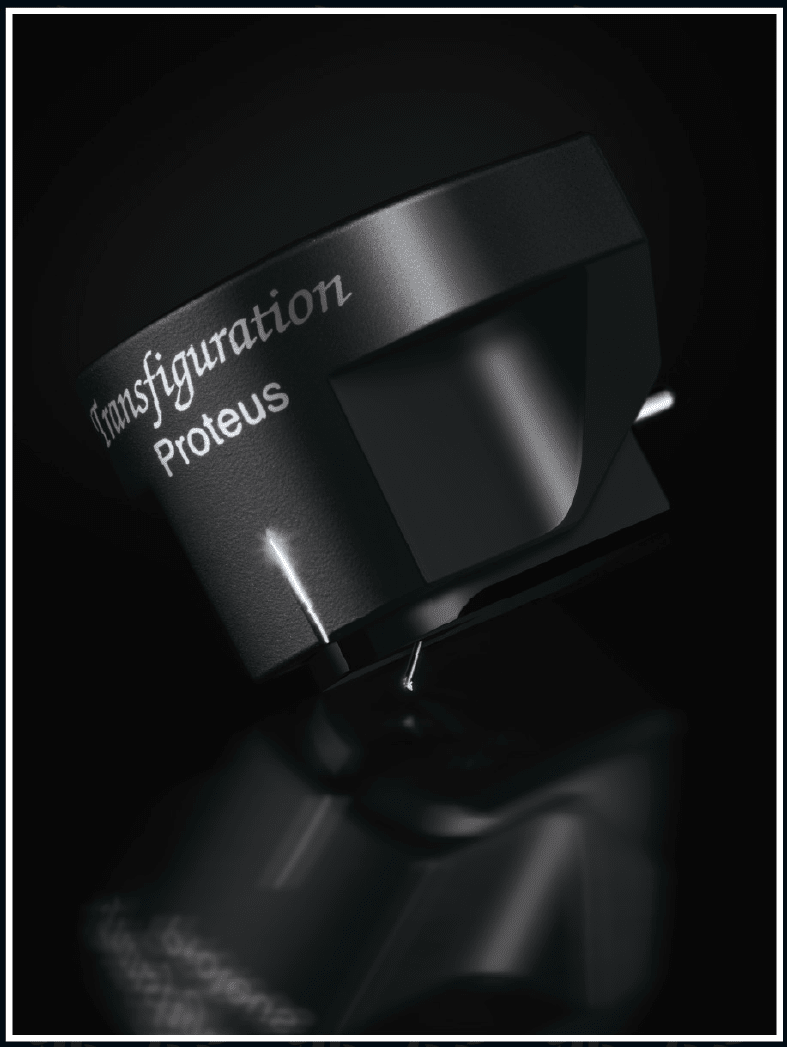

Proteus
moving coil cartridge
SPECIFICATIONS
- body: aluminium, resonance controlled
- cantilever: 0.3mm diameter solid boron
- stylus: PA (3 x 30µm), solid diamond
- core/coils: ultra-high-grade square core with pure silver coils
- magnet: neodymium (front and rear)
- weight: 7.8g
- output voltage: 0.4mV (3.54cm/sec, 1kHz)
- internal impedance: 2 ohms
- frequency response: 10Hz - 20kHz +1.5dB / 20Hz - 40kHz +2dB
- channel seperation: > 27dB, 200Hz - 1kHz
- channel balance: < 0.5dB, 1kHz
- tracking ability: > 70µm at 315Hz at the tracking force of 2g
- dynamic compliance: 12 x 10 to the minus 6cm/dyne
- recommended loading: > 10 ohms
- recommend’ tracking force: 2.0 g
- optimum working temp’: 23º celsius
- break in period: min. 40 hours
