The Spectral SDR-4000SV Reference CD Processor System
The SDR-4000SV Reference CD Processor is a limited edition reference instrument crafted in the Spectral engineering department and individually programmed and calibrated by its designer Keith Johnson. Relatively unlimited time and resources have been utilized to achieve our ultimate objective: Engineer the most sophisticated and sonically accurate CD player in the audio industry. Those that are familiar with Keith Johnson’s credentials and previous achievements in digital design know this objective is not taken casually or an idle boast. As with previous editions of our SDR components from the 1980s and 1990s, such as the SDR-1000 and SDR-2000 reference digital components, it takes our engineers multiple design generations to arrive at the final and ultimate model. The SDR-4000SV has been previously produced in two highly regarded versions, the original SDR-4000 and the revised SDR-4000 Pro which incorporates the exclusive HDCD “Long Filter” technology. It has taken Spectral engineers four years more to develop the final and most uncompromising generation, the SDR-4000SV. In the SDR-4000SV, Keith Johnson and the design team address their remaining performance objectives to create the ultimate SDR-4000 and redefine the possibilities of the Redbook CD medium in the finest music systems. The SDR-4000SV Reference CD Processor is Spectral’s ultimate compact disc player, completing the Spectral Digital Reference system begun with the SDR-2000 Digital Processor. The development program for the SDR components was initiated over 15 years ago with the introduction of the Spectral SDR-1000 Reference Disc System, the industry’s first truly high-end compact disc playback system. The innovative SDR-1000 was years ahead of its time, pioneering fundamental processing breakthroughs such as balanced decoding and conjugate correction filters. More recently, the ambitious SDR-2000 Professional Processor has stunned the audio industry with its technical advances and resolving power. Sharing its uncompromising circuit architecture with the historic HDCD recording system by Pacific Microsonics, the Spectral SDR-2000 is widely considered to be the finest digital processor available as well as the acknowledged reference for High Definition Compatible Digital recordings. The arrival of the SDR-4000SV Reference CD Processor culminates the SDR program at Spectral and achieves the final integration of our high resolution digital technology. Supporting the challenge are new generation component technologies and state-of-the-art test systems to push forward the envelope of digital audio performance. Like other Spectral SDR components, no detail or expense has been spared in the SDR-4000SV to achieve the status of a true reference.
Why A Reference CD Player Is Still Necessary
With the introduction of digital playback formats for consumers such as SACD, it would seem only logical that new digital audio playback components should support these new recordings as well as the established compact disc format. In truth, for general applications, affordable universal disc players may well become the accepted norm for playback of digital audio recordings. In-depth examination of these new high-bit technologies, however, reveals stunning performance limitations when considered for applications of the highest quality. The mass-market origin of the new high-bit digital audio technologies precludes their inclusion in the finest 16 bit CD playback applications due to an array of engineering limitations and performance compromises. Simply put, 24/96 digital audio technology reproduces conventional 16 bit compact disc recordings poorly. In point of fact, reproduction of CD recordings in today’s SACD players is arguably a step backwards, with poorer sonics than previously achieved in CD only players and processors.
We find the technical compromises of the high-bit systems far too serious to ignore when reproducing compact disc recordings. An important musical heritage has been captured in the years since the introduction of the compact disc digital format, containing some of the finest musical performances of the twentieth century. It is technically clear that the best reproduction of these compact disc recordings will only be accomplished with dedicated CD playback components. Developing a dedicated CD playback system capable of achieving ultimate possible reproduction from compact disc recordings is the goal of the Spectral SDR-4000SV Reference CD Processor. Ultimate reproduction from compact disc recordings is assured by the SDR-4000SV Reference CD Processor.
Design Fundamentals: The Spectral Solution
As digital audio design has matured, cookbook design compromises and cost cutting have become entrenched in products at all price levels. Circuit compromises believed necessary for design practicality are ubiquitous in even today’s most sovereign high-end digital designs. The endless engineering debate concerning what constitutes superior circuit performance is ironic considering the relative ease with which superior music reproduction is identified by the human ear. We believe the solution to the dilemma of digital audio quality lies in the design fundamentals, examining every design convention to identify a superior solution.
In approaching the engineering of the analog sections of a quality digital audio component you would, of course, expect unanimous agreement concerning the use of fine discrete amplification circuits for all analog stages, just as those implemented in any quality high-end preamp or amplifier. The surprising reality is that virtually all of today’s digital audio products, processors and CD players utilize integrated circuit amplifiers (IC op-amps) for most, if not all, of their analog stages. The use of low voltage, low bias integrated circuit amplifiers is the de-facto standard in the digital audio today.
Audiophiles and traditionalists may be shocked at the use of IC chips in high-end digital components due to the poor performance of monolithic circuits. However, in reality it is almost impossible to design practical fully discrete amplifiers to replace inexpensive ICs designed as I/V, equalizer and output amplifiers in digital audio components. For those reasons virtually all digital audio products use IC chips in the analog signal path.
Just how good can digital audio be? In reality, it is rather difficult to say since circuit quality compromises are virtually universal. Digital audio is always heard through the sonic filter of mediocre integrated circuit amplification and buffers. Is there any other option than the compromise of IC amplification? Yes, Spectral engineers have developed all-discrete, high performance analog circuitry for the SDR-4000SV CD processor. All analog sections from DAC amplifier and equalizer to high-level output stage are discrete and uncompromised by IC monolithic circuits. Now analog sonics and performance are equal that of the finest high-end preamplifiers for the first time.
Unmatched Conversion Accuracy
Spectral's two decades of state-of-the-art digital audio design experience are essential when it comes to extracting maximum performance in the critical DAC stage. Digital to analog conversion within SDR-4000SV is performed at an extraordinarily high level of accuracy and features a Spectral-developed, double balanced implementation of the Analog Devices AD1853 multi-bit Sigma/Delta DAC. This unusual multi-bit double push-pull architecture is a proprietary Spectral innovation achieving DAC resolution and accuracy unrivaled by any other system. Directly inspired by the uncompromising discrete DAC topology of the Spectral SDR-2000 Professional Processor, the SDR-4000SV DAC utilizes a differential current (I/V) conversion stage with Spectral’s own dedicated DAC amplifiers.
The First Fully Discrete DAC Amplifier

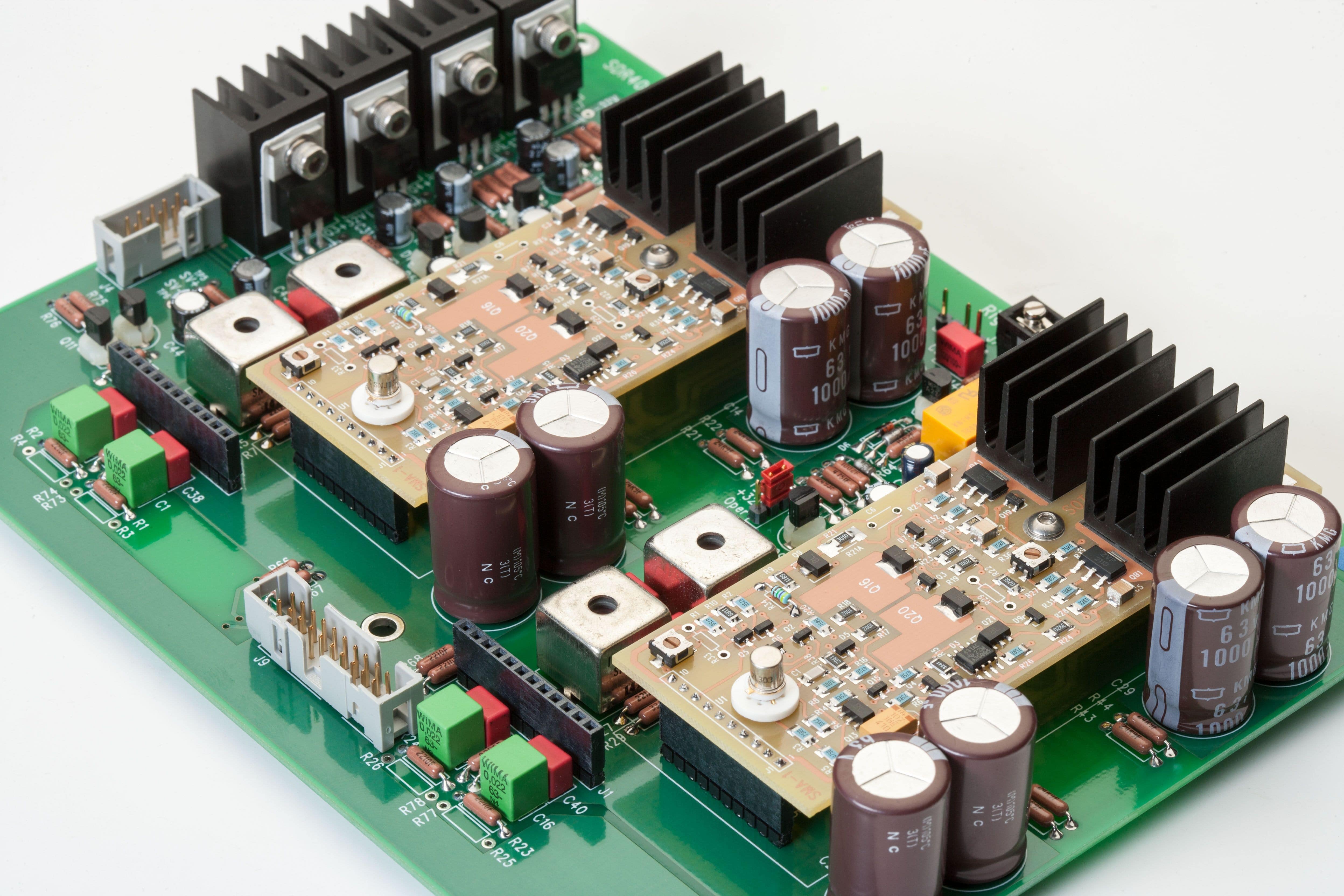

As the first analog signal stage following the DAC converter, the DAC amplifier or I/V stage is arguably the most critical analog signal stage in the system. The DAC amplifier is where ‘the rubber meets the road’ so to speak and where circuit linearity, speed and resolution are absolutely essential in determining ultimate system sonics. Unfortunately, today’s DAC and I/V amplifiers in digital audio components are universally implemented with low bias, low voltage IC op-amp circuits due to their ease of design, stability and low cost. Research at Spectral under live recording conditions indicates that the use of integrated circuit DAC amplifiers in today’s high-end digital products results in severe performance compromise.
Although designing a stable, discrete circuit DAC amplifier is a challenging task, solving the dilemma of IC compromise is a priority at Spectral. Our solution is the new SHHA I/V module (Spectral High-Speed Hybrid Amplifier) for use after the digital decoder. This discrete high performance amplifier is fully balanced and employs eight amplifier sections with superlative rise time and bandwidth characteristics. Only matched discrete through-hole fet and high-speed bipolar transistors are capable of the degree of precision required. The SHHA DAC amplifier module in the SDR-4000SV solves the classic IC compromise in this critical analog stage for the very first time.
High Performance Passive Equalization
The output equalizer section of current digital audio components is another critical analog circuit plagued by performance compromises. Today’s output equalizers are fully active designs utilizing easy to implement IC filter circuits. These circuits are very attractive in their size and cost, but subject the sensitive signal to all the various distortions inherent in low voltage monolithic amplification. Spectral engineers have side-stepped the performance problems of integrated circuit filters entirely with an ingenious passive equalizer topology. The SDR-4000SV passive equalizer is developed around a transient perfect circuit utilizing the finest available passive components such as handmade silver litz wire chokes and low noise bulk metal precision resistors. Eliminating the distortions inherent in IC based equalization results in a new level of signal purity in the SDR-4000SV.

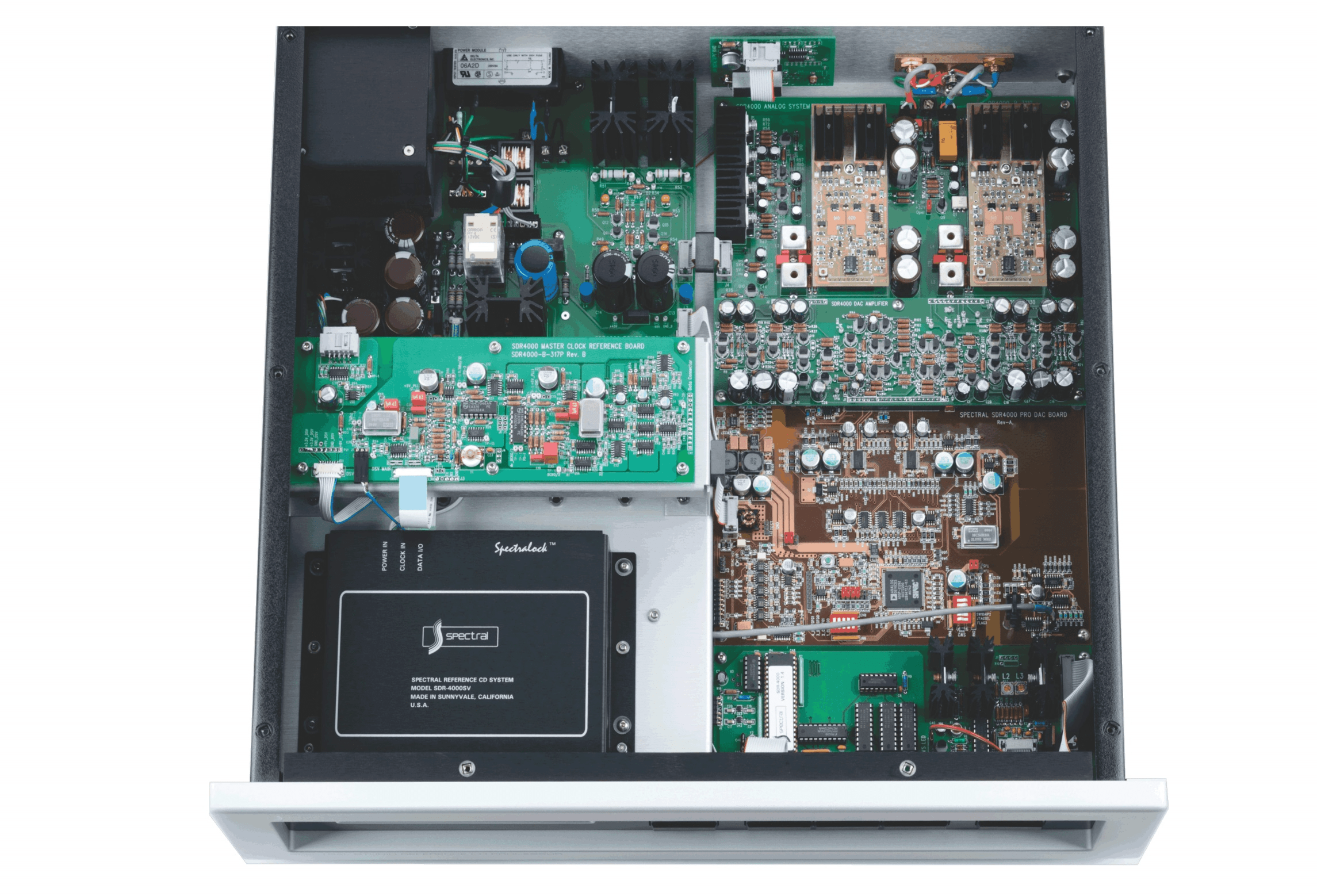

.jpg)
Uncompromised Analog
The innovative, high performance output section of the SDR-4000SV is a classic example of the difference uncompromising Spectral engineering makes. Although routinely neglected in digital audio design, the line level output stage is as critical to ultimate performance as it is in high-end preamplifier. For this reason, Spectral engineers have banished typical integrated circuit compromises for state-of-the-art discrete analog amplifiers proven in our finest high-end preamplifiers. Our DMC-30 line level stage and power supplies have been adapted for the output section of the SDR-4000SV. This architecture utilizes the spectacular Spectral SHHA high-speed amplifier modules which have revolutionized Spectral reference preamps. This uncompromising single-ended line section completes the distinguished analog stages of the SDR-4000SV, rivaling the performance and sonic sophistication of the world’s finest high-end preamplifier designs.
The Spectral SV Technology Delivers Superior Analog Performance
Constant research in our fundamental technologies drives component advancement at Spectral. When we introduced our recent SHHA Generation 3 line section modules in the DMC-30SV reference preamp, they proved to be a game changer. Our customers and our dealers proclaimed the DMC-30SV a "revelation", redefining preamplifier performance in the finest music systems. Now the "Super Veloce" technology is adopted for the high level output section of the SDR-4000SV CD processor, with exceptional results. In reality, all digital source components are a combination of systems and as much dependent on the quality of analog circuits as digital. This awareness of analog's critical role has driven Spectral digital design practice to focus the same demanding performance criteria we use in developing our preamplifier line sections. In the SDR-4000SV, the line amplifiers and power supplies are replicated from the uncompromising DMC-30SV reference preamp. In all probability, there may not be a more sophisticated analog output section in a digital component today! However, there is more that is required to surpass our previous analog efforts. A newly designed DAC summation I/V amplifier is optimized to support the higher speed and gain of the SV output section. The hand calibrated passive equalizer filter section is also realigned. Taken in total, the fully discrete, high speed, class A amplifier topology of the SDR-4000SV, takes analog performance to a new level in a digital component.

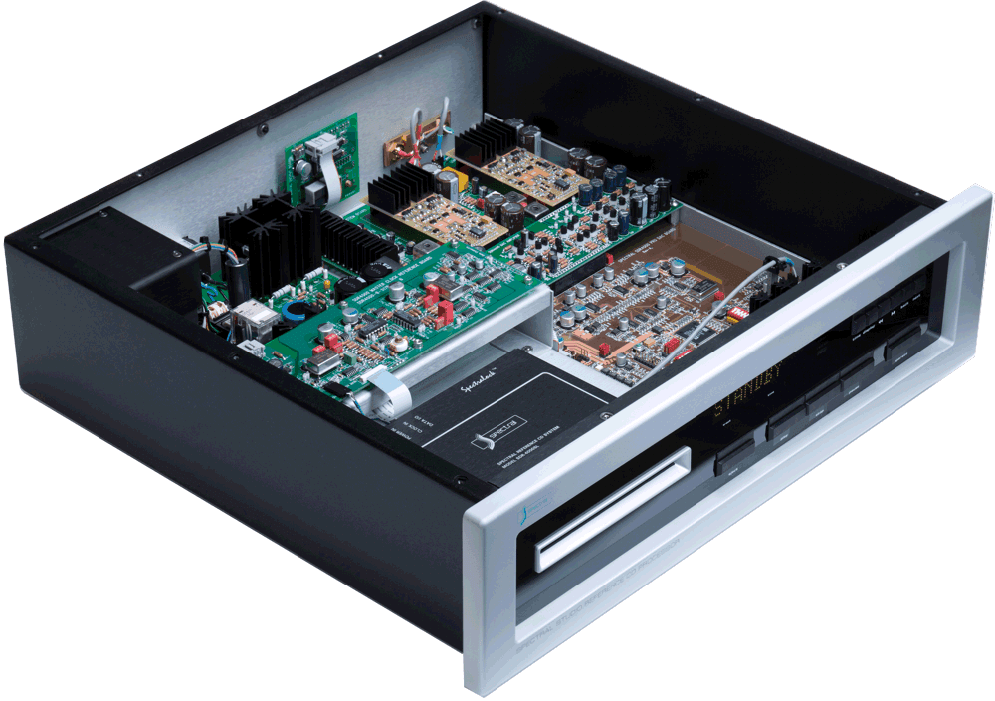

.jpg)
Quiet Power
The SDR-4000SV has a sophisticated array of five fully discrete power supplies to individually support each section of the player: CD drive and loader, servo circuitry, display and control system, digital system and re-clocking and for analog amplifiers. Extensive design detailing ensures that the elaborate SDR-4000SV power supply system isolates the ultra-quiet processor and analog electronics from the vagaries of all types of line-borne distortion and noise as well as eliminating all emissions from the unit which could affect other sensitive system components.
Spectral Introduces the HDCD ‘Long Filter’ Decoding Technology
In the SDR-4000SV CD Processor, Keith Johnson set out to redefine the performance of the 16 bit compact disc with the most advanced components and circuit topologies yet devised for CD reproduction. At the same time, a parallel effort by Keith Johnson and Michael ‘Pflash’ Pflaumer was launched to develop a very advanced digital playback filter based on the sophisticated Pacific Microsonics HDCD software. Since its introduction in 1995 the original PMD-200 HDCD digital filter software has been the choice of high-end digital audio designers for their most ambitious processors and players. This was no accident. Digital designers in most high-end companies recognized the unrivaled performance of the PMD-200. Although conventional digital filter designs appear in every type of digital product today, custom digital audio filters are not designed every day, particularly to ultimate audio standards. The Microsonics discrete HDCD filter chip gave high-end designers the most powerful filter processor with the most sophisticated algorithms yet developed for 16 bit digital playback.
Now Spectral introduces the next generation of high performance filters. The new HDCD ‘Long Filter’ technology takes digital playback to the next level with the fastest sampling and most filter poles ever assembled for digital audio playback. With new software designed to run on today's most powerful 32 bit processors, the Spectral ‘Long Filter’ utilizes floating point math for higher accuracy and features the processing power of eight PMD-200s for vastly faster calculations.
The Spectral HDCD ‘Long Filter’ is Today's Most Advanced 16 Bit Decoding Software
The original HDCD filter correction strategy was designed by ‘Pflash’ Pflaumer around Keith Johnson’s psycho acoustic models and implemented in the fastest processors of the mid-1990s. The vastly higher sampling rate and memory storage of the ‘Long Filter’ make possible a much more extended version of Keith Johnson’s sonic model and more precise corrections. These advanced correction algorithms improve timing accuracy at all frequencies we hear. By anticipating time shift and producing an opposing response program, time dispersion is greatly corrected adding the third dimension to filter math that reveals more life, sparkle and dimensionality. In a day and age of maturing digital audio technology, cost reduction and component integration, (think of today's premium sigma-delta type DAC chips with self-contained filter programs which lower costs and reduce chip counts) there is the unexamined belief that digital audio filter programs have attained a high degree of accuracy and refinement, especially in high end and studio applications. The unfortunate truth is, virtually all digital audio products from mid-fi to the most expensive high-end luxury and pro sound units all use most of the same commodity filter technology. Since the digital audio chip industry has moved on to standardized, prepackaged filter programs, high-end component designers are left with few options but to hope for the best and assume these packaged filters are more than “good enough”.
The Spectral ‘Long Filter’ Makes Compact Disc a High-Resolution Medium
This is not the first time we have encountered the “perfect sound forever” assumptions in the attitudes of digital audio designers. After evaluating the performance of the most ambitious DAC/filter programs available under dynamic recording and playback conditions, Spectral engineers found filter sonics to be seriously compromised even for the most non-critical applications. Clearly, filter design compromises are holding back digital sound quality in most digital audio products. The Spectral HDCD ‘Long Filter’ is our solution for this vital link in the digital decoding chain and arguably the first significant step forward in high-performance digital audio filter design in over a decade. The Spectral HDCD ‘Long Filter’ makes the compact disc a high-resolution medium.
The Spectral UltraDrive High Performance Optical Drive Redefines Data Precision
Keith Johnson’s experience in evaluating and testing optical disc drives for video and audio use has few equals. In the 1970s Keith Johnson and Paul Greg joined development work which resulted in optical tracking servo systems used in the original laser disc systems, the forerunner to the compact disc drive. Later Keith worked intensively with Philips and Teac/Esoteric to develop the modified premium CD drives used in Spectral SDR components built in the 1980s and 1990s. Keith’s extensive experience with optical drives and servos continued as he evaluated CD drive performance in HDCD licensees throughout the audio industry. Finally, Keith has spent the better part of a decade evaluating manufacturer prototypes for a custom, high-performance drive exclusively for Spectral. Now, after years of development by Keith and our manufacturing partner, the new Spectral UltraDrive is finally here.

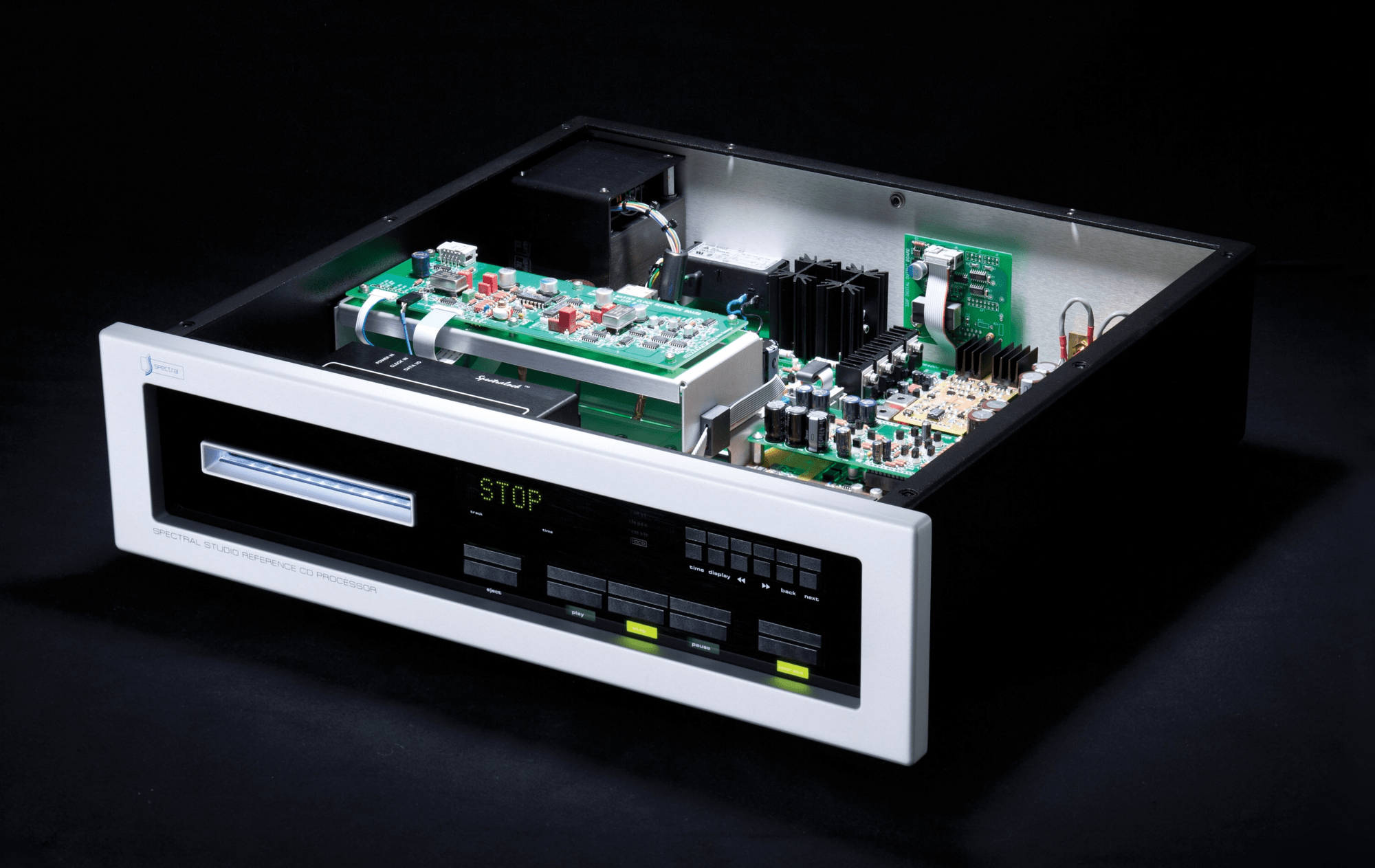

.png)
A Fundamentally Superior Compact Disc Drive
The Spectral UltraDrive is based on an unusual CD ROM computer drive designed for critical avionics and commercial applications. This high-rel drive stands out from the countless number of drives we evaluated for its superior performance and build quality and is rated at over twice the cycle life of any other premium drive built today. As most remaining optical drives are decontented mass-market models, destined to be phased out in the immediate future, our drive is contracted to be built for avionics and critical military use for many years to come with component parts support extending futher still. In all probability this drive will be one of the few fully drives many years from now. By starting with the most robust and overbuilt CD ROM drive on the market we can assure our customer reliable and extended service life. To minimize the service requirements our drive is a beltless design to eliminate the inevitable need for belt replacement found in most CD drives, including our own earlier SDR components. Our drive also features an extended life laser readhead with full glass optics to further reduce service needs. Perhaps the most unusual aspect of the new Spectral UltraDrive is something that it does not have. The UltraDrive has been engineered and tested to be clocked by an external oscillator, it has no clock reference of its own. Spectral engineers then clock directly from the DAC master clock for the highest possible timing accuracy. Slaving the optical drive directly from the DAC clock is acknowledged as the most precise method possible to control data output. But in the real world this ideal approach is never actually implemented in production, as the optical drive manufacturers are unwilling to produce drives without clock systems they can test. Spectral UltraDrive is different. We have co-developed the drive electronics to be run exclusively by our own external clock reference. The result is the first optical drive designed and optimized for external clocking.
Modular Approach Addresses Service Concerns
Having built reference CD playback components for over twenty-five years, we are interested in more than high performance alone. In the final edition of the SDR-4000SV we wanted to address the challenge of mechanical service on a more fundamental basis. In the past the finest available CD drives have also been the largest and most complex, with elaborate loading, damping and suspension systems. Servicing for the replacement of wear items like laser readheads and drive belts could require extensive disassembly and re-alignment. Our goal in the SDR-4000SV was to eliminate as much of the time and expense as possible. We have designed the UltraDrive as an easily replaceable, self-contained modular system. The UltraDrive is plugged directly into the master clock reference and firmly mounted to a critically damped foundation. The fully modular UltraDrive optical transport makes practical dealer and field-serviceability a reality for our SDR-4000SV for the first time.
The Spectralock Master Clock Architecture
The pursuit of ever improving clocking accuracy and lower timing error and jitter have been a fundamental priority in every Spectral SDR component since the original. Although generations of high-end audio digital components have previously proclaimed the “banishment” of jitter, careful listening evaluation of even the best of these reveals the clear sonic effects of these insidious distortions. We are under no casual illusion regarding this difficult technical issue: audible consequences of insufficiently precise data timing and noise-induced jitter are still the foremost reason that digital audio fails to deliver on its musical promise. Our new Spectralock Master Clock architecture is Keith Johnson’s most ambitious assault yet on jitter and its sonic consequences. The Spectralock data management system is fully integrated to the UltraDrive optical disc transport. It is completely enclosed and shielded and like other parts of the SDR-4000SV, its powering floats as if from batteries. Signal transmissions are balanced to self-cancel digital activity and data outputs are slaved from the ultra-precision crystal that direct clocks the conversion to analog signals at the DAC. These design features hide the optical transport and its servo activity to assure always accurate filter processing and prevent any intrusion of the drive to our silent conversion environment. The carefully shielded and interfaced UltraDrive transport contains a fast loading - quick to play data buffer. The Spectralock system grabs the information bursts from the CD and outputs a continuous time invariant stream of data. Twin synchronization loops slave both operations to the DAC master clock so that motors, tracking servos and other activity that would damage timing accuracy are sequestered to create a time stable stealth platform. The Spectralock system is considerably more precise than even the best master clock box systems which have noise induced jitter problems as a result of the long clock cables. Spectral’s fast lock synchronization loops, quick loading buffer and effective isolation strategy all combine to make an ideal platform for pristine timing for processing and conversion. We achieve an industry leading 120 dB signal-to-noise with better than one-part-per-million data accuracy. There is absolutely no presence of any other activities such as ripples, noises, stray fields or any intrusions to the digital waveforms. Our new Spectralock/Ultradrive system produces signals that are an exact replica of those making the recording - nothing added, nothing subtracted or changed.
Quality In Depth
Engineering refinement in the SDR-4000SV CD Processor extends to the quality of the user interface as well. The SDR-4000SV front panel is a model of understated elegance and usability, in the Spectral tradition, with a hand polished satin front panel and machined acrylic construction. Large alphanumeric displays monitor the CD drive and playback functions, allowing visual confirmation of remote operations from a distance. Refinement is also reflected in the convenience and precision of the SDR-4000SV remote control. The deluxe remote duplicates SDR-4000SV front panel controls and offers full input keypad and repeat functions. All metal construction of fully machined aluminum alloy components and premium powder coat finishing ensures rugged durability. The instrumentation grade momentary switching used on the SDR-4000SV front panel is also used on the SDR-4000SV remote for positive actuation and long operation. Two infrared transmitter diodes maximize signal power for extended operating range.
.jpg)
The Ultimate Reproduction of Compact Discs
The SDR-4000SV Reference CD Processor is designed to achieve the finest reproduction ever from compact disc recordings. As the prevailing medium of high-fidelity music recordings currently available, state-of-the-art reproduction from compact disc is a Spectral engineering priority. Many performance compromises long indigenous to even the finest digital audio design have been eliminated for the first time. Utilizing a sweeping array of technological advances, the Spectral SDR-4000SV CD Processor extracts new musical coherence and life from fine compact disc recording, proving clear insight into important musical performances of our time.
Spectral SDR-4000SV is the Industry's Finest CD Playback System
The industry leading performance achieved by the first SDR-4000 twelve years ago continues with the advancements of the SDR-4000SV today. No other digital component for CD playback approaches the challenges of 44.1 digital with the technical and design superiority realized in the SDR-4000SV. This superiority starts with a fundamental architecture dividing 4000 structure into eight fully independent and powered digital and analog sub-systems. Each sub-system has been realized with breakthrough technology and componentry using "best practices" employed in SOTA high-technology instrumentation. With zero cost-cutting and the finest components in existence, benchmark performance in 44.1 reproduction has been achieved. The addition of the new SV technology to the SDR-4000 results in the finest performing CD playback system in the industry, delivering unrivaled performance and the ultimate reproduction of music recorded on compact disc
SPECIFICATIONS
Digital Systems
Sample Rate
44.1 KHz
D/A Conversion
Four custom 24 bit DACs in double balanced configuration
Digital Filter
8x oversampling, 56 bit math 64 bit accumulator HDCD
Analog Filter
Passive type, fully discrete . Linear phase to 28KHz
Frequency Response
DC to 22 KHz +/- .3 dB
DAC Step Resolution
Better than 120 dB
Digital Noise Output
100 uV peak to peak or less
Transient Overshoot
8% or less
Transient Settling Time
100uS or less @ 1%
Intrinsic Jitter
1 picosecond rms or better, 3-4 picoseconds peak
Analog Systems
Outputs
RCA single-ended
Output Impedance
100 Ohms
Frequency Response
DC to 1.2 Mhz -3 dB
Harmonic Distortion
Less than .001
Intermodulation (SMPTE)
Less than .001
Nominal Output
0.75 Volt rms
Output Voltage Swing
2.5 Volts rms maximum
Signal to Noise Ratio
Greater than 120 dB
Channel Separation
Better than 115 dB
Slew Rate
400V/us
Power Requirements
Voltage
Factory set at either 120, 220 or 240 VAC @ 47.5 Hz to 440 Hz
Continuous Dissipation
65 Watts
CD Transport Specifications
Front Panel Controls
Load SelectorPlay SelectorStop SelectorPause SelectorOperate/Standby SelectorTime Display Function SelectorDisplay Brightness SelectorScan Backward SelectorScan Forward SelectorPrevious Track SelectorNext Track Selector Rear Panel
Spectralink Digital Interface (optional)
Main Power Switch
AC Line Fuse
IEC AC Power Connector Disc Loader
Slot load, custom designed, MIL spec.
Pickup
Objective lens drive type with 3-beam laser pickup linear drive servo
Wow & Flutter
Below measureable limit (accuracy of crystal)
Mechanical Specifications
Dimensions
19" W
16" D
4.25" H
48cm W40cm D10.8cm H
Weight Net
46 lbs.
20.9 KG
Please note that all of the information and specifications provided herein are subject to change owing to the evolutionary nature of Spectral designs and technology.
