Goodwin's High End has been representing dCS for a good number of years now. In addition for the past several years we have been the Warranty and Repair Service Center for dCS here is the US. So obviously if you are looking for expert advice on dCS you can count on us!

Having visited the factory for training we can report that dCS is really focused on designing and manufacturing high end audio digital source components. Certainly their new Vivaldi is ample proof of the drive and dedication with which they work on achieving their lofty goals!


dCS Vivaldi

The Vivaldi is the new top of the line digital source stack from dCS. From extensive listening we can definitely say that this is by far the best sounding digital front end that dCS has ever produced. Hearing is believing!

Note: For Technical Data Sheets and Vivaldi User Manuals click here.




From the Manufacturer:

Vivaldi DAC

The dCS Vivaldi range redefines state of the art in digital playback representing the pinnacle of our ‘no compromise’ approach to product design and setting a new standard for the future of digital audio by delivering an unrivalled in-home musical experience. Vivaldi DAC uses the latest groundbreaking technology from dCS including ‘next generation versions of the dCS Ring DACTM, Digital Processing Platform and Clocking System so that, as the hub of a digital audio system, an array of features guarantee amazing performance from any digital source. The unique design of the legendary dCS Ring DACTM combines exceptional linearity with very high speed operation enabling it to deliver true 24 bit performance even at low signal levels. The latest generation of our Ring DACTM incorporates a number of important technical advances that have resulted in enhanced dynamic range, reduced jitter, improved channel separation and greatly improved musical realism. The powerful digital processing platform of Vivaldi DAC is based around Field Programmable Gate Array (FPGA) chips, Digital Signal Processing (DSP) chips and microcontroller system. All of these use code developed and maintained in the UK by dCS. Vivaldi DAC represents true state-of-the-art in digital audio by offering twice the logic capacity of previous generations, emphasised by its unmatched sonic and measured performance. dCS were pioneers in the use of external clocks in digital audio systems and the redesigned multi-stage Phase-Locked-Loop (PLL) system used in Vivaldi DAC sets worldbeating standards for accuracy and control of troublesome jitter from the incoming audio stream. Vivaldi DAC features standard AES3, Dual AES, SDIF-2 and SPDIF inputs in addition to an asynchronous USB 2.0 interface. The enhanced digital volume control allows direct connection to a power amplifier so that in the majority of systems there is no need for a separate preamplifier. Maximum output can be set at either two or six volts to suit different amplifier and speaker combinations. Featuring a completely new interface designed to handle all high resolution musical formats up to DXD (24 bit data at 352.8 and 384kS/s) plus DSD, the optimised DSP filters available to Vivaldi DAC owners will ensure you can extract every last nuance of musical detail and emotion by tuning the system to suit your personal preference. The dCS ‘soft' approach to programmable logic makes it extremely easy for users to update Vivaldi DAC software, whether adding new features, installing performance upgrades or adapting to changes in digital formats. Used as a standalone DAC or as part of a complete Vivaldi digital audio playback system Vivaldi DAC gives a performance of effortless realism each and every time.

Key Features
· Utilising the latest generation dCS Digital Processing Platform which offers state-of-the-art measured performance and unrivalled musical experience.
· Designed for maximum flexibility by accepting audio data from a variety of digital sources.
· Flexible output configuration can be optimised in systems with and without pre-amplifiers.
· Comprehensive clocking architecture plus an auto-clocking mode used in Vivaldi range improves ease of use and minimises jitter.
· USB interface allows easy connection to a computer, accepting PCM data at up to 24/192 and DOP (DSD over PCM).
· The interface runs in Asynchronous USB mode, which makes the DAC immune to jitter from the typical computer's noisy clock.
· Improved power supplies give lower running temperature and improved tolerance to AC supply variations.
· Multi-stage regulation ensures sensitive analogue circuitry is not affected by digital interference.
· Features separate power circuits for the digital and analogue sections to further enhance the power supply cleanness.
· Aerospace grade machined aluminum chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration

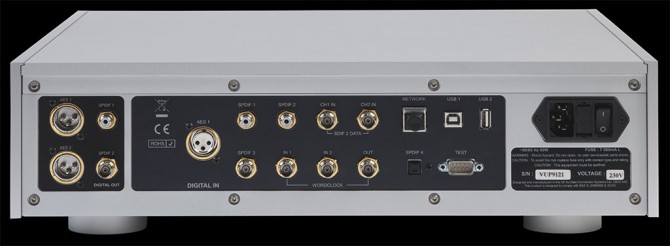

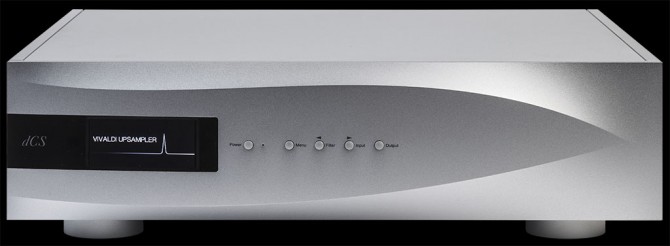

Vivaldi Upsampler

The dCS Vivaldi range redefines state of the art in digital playback and represents the pinnacle of our ‘no compromise’ approach to product design, setting a new standard for the future of digital audio by delivering an unrivalled in-home musical experience. Vivaldi Upsampler is designed to act as the hub of a digital audio system and will transform your listening experience, taking your music collection to levels you have not heard before. Operating as a digital-to-digital converter Vivaldi Upsampler accesses music from any digital source and converts the audio from its native sample rate to either high resolution DXD (24 bit data at 352.8 or 384 kS/s), DSD (1 bit data at 2.822 or 3.07MS/s) or standard high resolution PCM (24 bit data up to 192kS/s). The results gained from Vivaldi Upsampler are extraordinary – a more vibrant, 3-dimensional, transparent and effortless performance. Vivaldi Upsampler features a wired network connection and can stream high resolution audio files stored on a computer or on network storage via UPnP™. The additional asynchronous USB input on Vivaldi Upsampler also allows direct connection of a PC and supports high resolution audio up to and including 192kS/s or DSD over PCM (DOP). The USB interfaces runs in Asynchronous USB mode, which makes Vivaldi Upsampler immune to jitter from the typical computer’s noisy clock. Vivaldi Upsampler is Apple Authenticated and supports playback of iPod/iPhone-stored digital media, bypassing the iPod/iPhone internal DAC to ensure optimal performance. USB memory hardware is also supported. An array of independently selectable digital inputs (RJ45, USB, AES, SPDIF, SDIF-2, Toslink) completes the versatility of this powerful machine and elevates the performance of Red Book CD from CD Players or high resolution audio from digital streamers to a previously unsurpassed level. dCS were pioneers in the use of external clocks in digital audio systems and the redesigned multi-stage Phase-Locked-Loop (PLL) system used in Vivaldi Upsampler sets world-beating standards for accuracy and control of troublesome jitter from the incoming audio stream. Control of such a versatile product is extremely simple with the user having the choice of using the full colour front panel menu, Vivaldi Controller App or the premium dCS remote control. The Vivaldi Controller App also allows users to change DAC inputs and volume, simplifying the control experience further. The dCS ‘soft’ approach to programmable logic makes it extremely easy for users to update Vivaldi Upsampler software, whether adding new features, installing performance upgrades or adapting to changes in digital formats. Used as part of a complete Vivaldi digital audio playback system Vivaldi Upsampler gives a performance of effortless realism each and every time.

Key Features
· Utilising the latest generation dCS Digital Processing Platform which offers state-of-the-art measured performance and unrivalled musical experience.
· Designed for maximum flexibility, both input and output configuration can be optimised for systems with various digital sources.
· New auto clocking mode used in the Vivaldi range improves ease of use and minimises jitter
· Improved power supplies give lower running temperature and improved tolerance to AC supply variations.
· Multi-stage regulation ensures sensitive analogue circuitry is not affected by digital interference.
· Aerospace grade machined aluminum chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration.


Vivaldi CD/SACD Transport

Vivaldi Transport is designed to extract revelatory levels of detail from both CD and SACD and is the ultimate machine for silver disc replay. All signal processing in Vivaldi Transport is controlled by electronics designed by dCS. It uses the TEAC Esoteric VRDS Neo™ mechanism which provides a brushless motor with heavy flywheel for stable disc rotation and super rigid construction.

The powerful digital processing platform of Vivaldi Transport is based around Field Programmable Gate Array (FPGA) chips, Digital Signal Processing (DSP) chips and a microcontroller system. All of these use code developed and maintained in-house by dCS.

Vivaldi Transport represents true state-of-the-art in digital audio by offering twice the logic capacity of previous generations, delivering unmatched sonic and measured performance.

In order to enhance the cleanness of the power supply and isolate the mechanism from the electronics Vivaldi Transport features a completely new chassis design that has separate power circuits for the digital processing and CD/SACD mechanism sections. This has resulted in near silent operation.

Vivaldi Transport features a Dual AES output that supports dCS-encrypted DSD (1 bit data at 2.822MS/s) to a dCS DAC from SACD.  Vivaldi Transport also offers the option of upsampling CD data to DXD (24 bit data at 352.8kS/s) and transmitting this data over the same Dual AES interface.

SACDs are played in their native DSD format, again using the Dual AES interface. Native CD data is available from 4 PCM outputs (1x AES/EBU and 2x SPDIF, 1x SDIF-2), as is down-sampled SACD data.

Vivaldi Transport is intended to be used with the matching Vivaldi DAC or with any suitable industry standard DAC. The unit may be run either in Master mode or with the DAC as the system clock. Performance will be enhanced further by adding Vivaldi Clock to the system.

The dCS ‘soft’ approach to programmable logic makes it extremely easy for users to update Vivaldi Transport software, whether adding new features, installing performance upgrades or adapting to changes in digital formats.

Used as part of a complete Vivaldi digital audio playback system Vivaldi Transport gives a performance of effortless realism each and every time.

Key Features
· Utilising the latest generation dCS Digital Processing Platform which offers state-of-the-art measured performance and unrivalled musical experience.
· Plays Red Book CDs in their native 16/44.1 format AND upsamples the data to either DSD or DXD.
· Plays SACDs in their native DSD format AND downsamples the data to CD format.
· Improved power supplies give lower running temperature and improved tolerance to AC supply variations.
· Multi-stage regulation ensures sensitive analogue circuitry is not affected by digital interference.
· Features separate power circuits for the digital processing and CD/SACD mechanism sections to further enhance the power supply cleanness.
· Aerospace grade machined aluminum chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration.




Vivaldi Master Clock

The dCS Vivaldi range redefines state of the art in digital playback representing the pinnacle of our ‘no compromise' approach to product design and setting a new standard for the future of digital audio by delivering an unrivalled in-home musical experience. Vivaldi Master Clock is a powerful yet simple to use Grade 1 master clock based on our pioneering developments in studio and home audio. Featuring two banks of clock outputs capable of outputting different frequencies, Vivaldi Master Clock uses the latest groundbreaking technology from dCS. In a digital audio system samples must be accurate in level and time. Jitter, which exists in all digital systems, can result in timing errors in these samples causing the analogue signal to be reconstructed inaccurately. In a dCS system our DACs can act as the system master clock, but listening tests have shown that there is no substitute for a high-quality, dedicated master clock. dCS were pioneers in the use of external clocks in digital audio systems and our clocking technology has been continually refined so that our latest multi-stage Phase-Locked-Loop (PLL) system sets world-beating standards for accuracy and control of troublesome jitter from the incoming audio stream. All dCS Master Clocks are subjected to rigorous in-house testing. The crystal oscillators are pre-aged, selected for long term stability and then individually calibrated over a wide temperature range to ensure consistent optimal performance. Vivaldi Master Clock uses a sophisticated microcontroller system to ensure smooth correction as the temperature changes and this approach gives a more stable result than either oven controlled crystal oscillators or even atomic clocks. All dCS master clocks are designed to generate industry standard Word Clock on 75 ohm co-axial cable. Other manufacturers' equipment that has been designed to accept standard Word Clock can be used with our clocks. Vivaldi Master Clock may be slaved to an external reference (such as an atomic clock or GPS reference) if increased accuracy is desired. Our sophisticated multi-mode Phase-Locked-Loop (PLL) significantly reduces jitter from the reference source. The dCS ‘soft' approach to programmable logic allows the user to easily update Vivaldi Master Clock software, whether this is to add new features, improve performance or adapt to changes in digital formats. Used as part of the Vivaldi digital audio playback system Vivaldi Master Clock improves on an already spectacular sound and takes it into an entirely new domain. With a clock added to a dCS system images snap into sharper focus and the music displays a substantially greater sense of authority and power as well as, most importantly, offering noticeably higher resolution of detail.

Key Features
· Utilising the latest generation dCS Digital Processing Platform which offers state-of-the-art measured performance and unrivalled musical experience.
· Designed for maximum flexibility as output configuration can be optimised in systems with a variety of digital audio sources.
· Dual crystal oscillators with microcontroller-enhanced temperature correction.
· New auto-clocking mode used in the Vivaldi range improves ease of use and minimises jitter.
· Improved power supplies give lower running temperature and improved tolerance to AC supply variations.
· Multi-stage regulation ensures sensitive analogue circuitry is not affected by digital interference.
· Aerospace grade machined aluminum chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration




Summary & Highlights

dCS Vivaldi Technical Summary

Vivaldi Technical Highlights



Manuals

Vivaldi DAC Manual v1.0x

Vivaldi Transport Manual v1.0x

Vivaldi Clock Manual v1.0x

Vivaldi Guide v1.0x



Data Sheets

Vivaldi DAC Datasheet

Vivaldi Transport Datasheet

Vivaldi Upsampler Datasheet

Vivaldi Master Clock Datasheet



Cable Listing for Interconnecting a 4 Chassis Vivaldi Stack:



AES-EBU Cables

Vivaldi Transport-Upsampler (1) AES-EBU balanced line digital cable XLR-XLR

Vivaldi Transport-DAC (2) AES-EBU balanced line digital cable XLR-XLR

Vivaldi Upsampler-DAC (2) AES-EBU balanced line digital cable XLR-XLR



SPDIF Clock Cables

Vivaldi Clock-Transport (1) BNC-BNC

Vivaldi Clock-Upsampler (2) BNC-BNC

Vivaldi Clock-DAC (2) BNC-BNC



USB Cable (optional)

Music Server-Vivaldi Upsampler(1) USB



AC Power Cables

Vivaldi Transport (1) 15 amp AEC power cord

Vivaldi Upsampler (1) 15 amp AEC power cord

Vivaldi DAC (1) 15 amp AEC power cord

Vivaldi Clock (1) 15 amp AEC power cord



Analog Interconnect Cables

Vivaldi DAC Output - 1 pr XLR balanced line or RCA single-ended interconnects
